When you arrive at the Lotus F1 Team HQ you’re politely asked not to take pictures without asking first. It soon becomes clear that most of the site is off bounds photographically, so we agree that it’ll be easier all round if our guide, senior account manager Luca Mazzocco, simply tells us when we can take photos.

It’s not so much the racing kit itself that Lotus F1 seems concerned about, but rather what might be on any computer screens that creep into shot. Because if you thought that Formula One racing is about dashing James Hunt types having a spin between love-ins with multiple air hostesses and filming Brut 33 ads, you’re probably also wondering why off licenses don’t sell Double Diamond any more.

In the early-1990s when the likes of the Williams F1 team caused a furore over the use of electronic systems in their cars, you could squeeze the data generated per vehicle in a race onto a single floppy disk. Today, a car will generate, on average, 15 to 16 MB. Per lap. And we’re talking 50 plus laps. Bits are so important now that regulations stipulate that teams trade off wind tunnel time against supercomputer cycles when it comes to running simulations on their designs.

Lotus makes great play of the fact that as well as being a plucky midrange team, it is also a little more open than some of its rivals. Their HQ is “somewhere” in the Oxfordshire countryside. We can’t be terribly specific - not because we were driven in blindfolded, but simply because, like most of its rivals, it’s found at the end of a track, off a lane, off a B-road you’ll have trouble finding.

The car park was off limits photowise, so you’ll have to take our word for it that, yes, there are rather a lot of Lotus sportscars in the car park, though the link between the manufacturer and the F1 team is described as a “branding partnership”. The reception area, as you’d expect, has plenty of silverware, reflecting the team’s history through its Benetton and Renault incarnations.

While the ownership and livery might have changed over the years, many of the people haven’t. Mazzocco has been there for 16 years, and other staffers will reel off the number of seasons, or drivers, they’ve been with the team.

A quick orientation session set the scene for what makes Formula 1 “special”, and what seems to pull tech vendors towards it. As well as housing the team’ silverware, the site houses engineers, and designers, the factory that makes most of the components of the car, its simulator, a wind tunnel and a supercomputer. It also has, of course garages, where the pit teams practice their stuff, and another with hydraulic pillars that can reproduce the bumps, dips and other conditions of any Formula 1 track - though not the impact of tyre debris.

Our first big stop is the design room, where they pore over the info from upstream - more on that later - tweak existing parts and design new full-scale parts. Which is what design rooms do the world over. What most don’t have to do is interpret information from up to 300 sensors in each Formula 1 car, not to mention the aerodynamics feedback from the wind tunnel and the supercomputer which constitute “upstream”, and take into account feedback from the Driver in the Loop, Lotus’ inhouse simulator, to help pare down each component to reduce weight and drag.

All within a time scale that means problems that come up from one weekend’s racing get fixed and new parts are produced and by the side of the track for the following race weekend.

Backing up the design room, and the rest of the 500-plus person Lotus F1 operation, is a 40 strong IT team, half of which are from Avanade, the Microsoft consultancy which struck a partnership deal with Lotus last year, in underpinning its move onto Microsoft Dynamics, and which was our ticket into the factory.

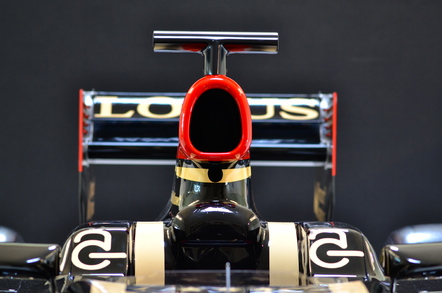

Lotus F1 car head view

Why do people find F1 so sexy?

Lotus F1’s IS program manager Matthew Walmsley is vague on the exact allocation of Avanade’s staffers - anything that could suggest where the team is concentrating its resources could be considered of value to its rivals.

But the Avanade staffers do get to wear the team logo’d gear - as does everyone else we saw on site, from the marketing people, to the designers, to factory floor and the guy collecting enormous tubs of swarf.

Reassuringly for techies everywhere, Walmsley says “I‘m not going to claim (IT) put Kimi [Räikkönen] into first place in Australia. But we could have prevented that.”

While the designers are all working on chunky high spec HP workstations, the team’s real computational horsepower lives “upstream”, where the key work on the car’s aerodynamics happens. This is an ongoing interplay between CFD - Computational Fluid Dynamics - simulating the aerodynamics of cars and components on the supercomputer, and the team’s 60 per cent scale windtunnel.

CFD is “very good at giving a visual representation of the airflow” Luca tells us, but even on a supercomputer, takes time. Sticking a model in the wind tunnel is much faster, “but you don’t see the airflow.”

Not everything can be simulated, and not everything translates into the real world: “It becomes hit or miss.” Or as one former head of engineering put it, “Darwinian engineering”.

Off the supercomputer, the designs are turned into 60 per cent scale models in the team's rapid prototyping machines. Lotus has been using rapid prototyping technology since 1998 - long before the rest of us would have said “ah, you mean 3D printers”.

Today’s machines build up a part in layers using a soupy-looking epoxy solution. Lasers “cure” a layer, solidifying it, then the base of the machine moves down, allowing the next layer to be cured. Imagine one of those toy grabber arcade machines found at the seaside or in the tackier type of carvery, but instead of a pile of fluffy toys you’re looking into a slightly viscous yellowish liquid, with blue laser lights playing across the top. And instead of a knock off Pikachu or Mickey Mouse, you get a plasticised model of a hydraulic manifold. Once complete the part can be whacked into the wind tunnel. Alternatively, it can be used to create a ceramic mould for metal parts.

These are all located on top of the wind tunnel, which, amazingly, we weren’t allowed to see, never mind photograph. We also didn’t get to see the Driver in the Loop simulator. This is a separate element of the development cycle - a chance for a driver, or experienced engineer, to get a feel for how a modification or other elements might work on the track, without putting a whole car, or driver, at risk. Or for personalising a set-up for a driver. As Walmsley puts it, a design or set-up might tick all the boxes, but, “the driver can find that it sucks.”

While we didn’t get the chance to feel the full fury of the wind tunnel, or compare the Drive in the Loop sim to our Wii F1 game, we did get the chance to wander into the supercomputer itself.
